Surgical - Window RTG 411.01/B

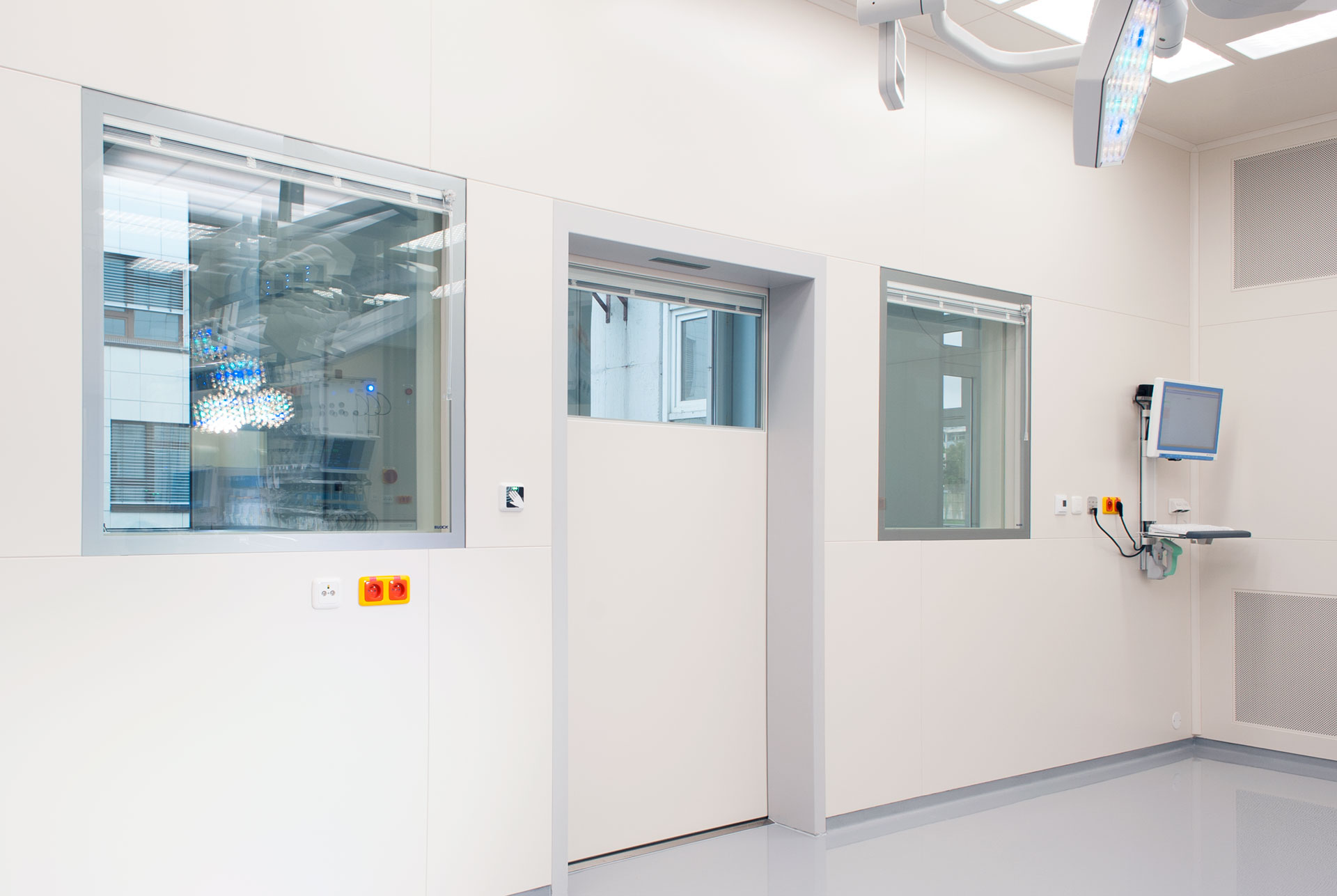

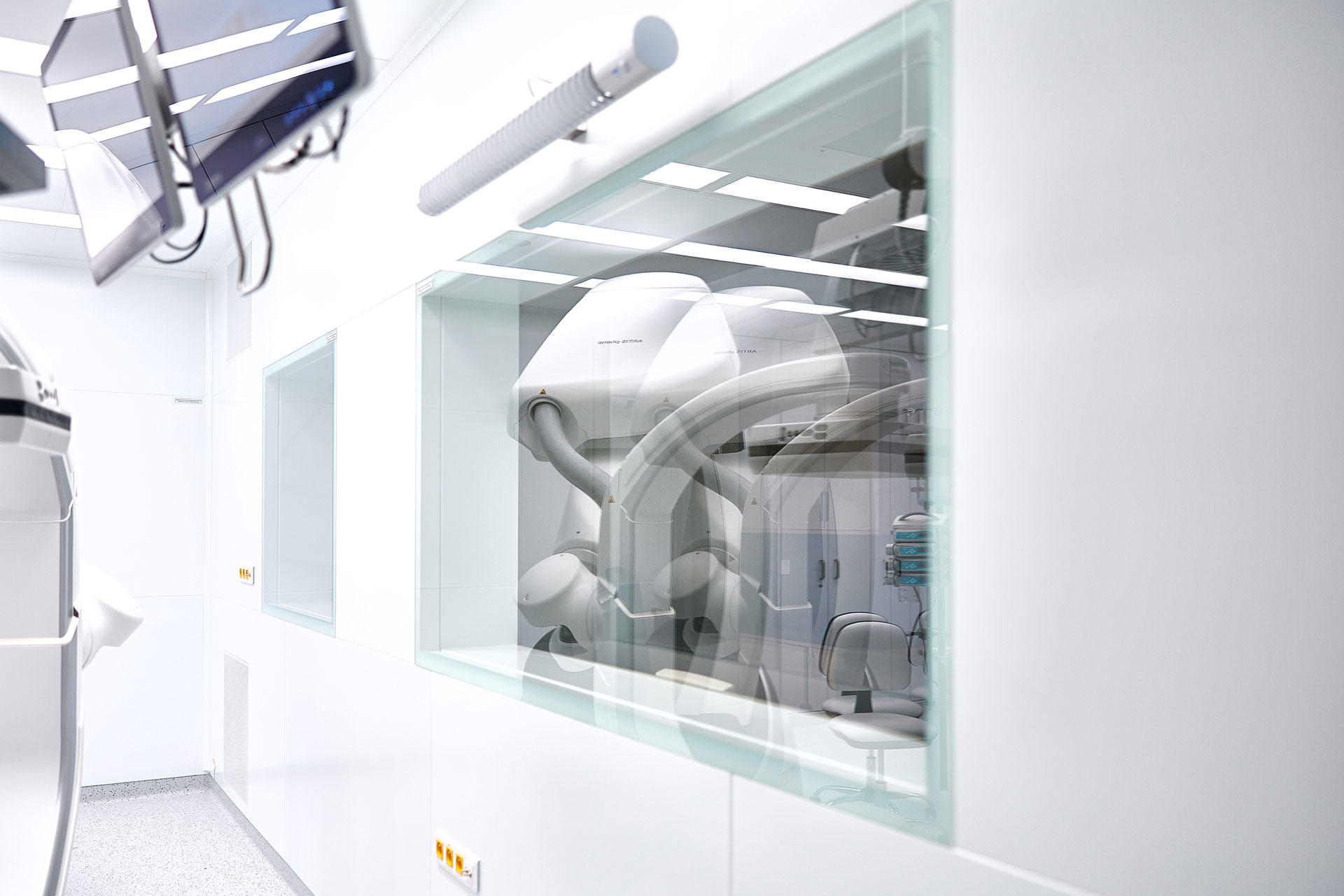

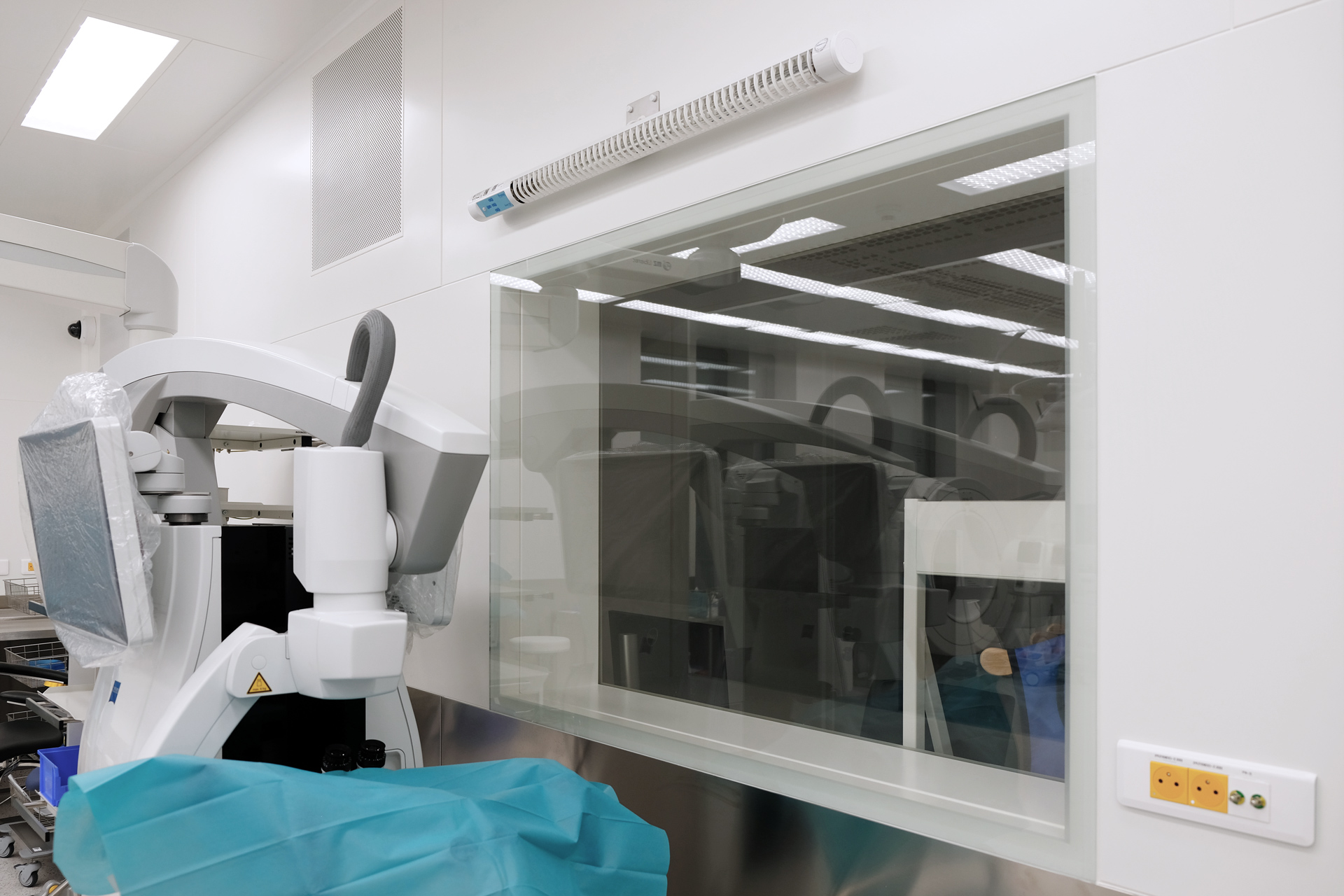

With the Surgical system, a glazed window panel represents one of the basic elements for the construction of operating theatres with maximum safety, sterility, hygiene, easy maintenance and sanitation.
The system in question is the PHARMA glazing system, offering double-sided glazing where the glass pane is in plane with the surface of the panel.
Its design makes it suitable especially for hospital environments.
TECHNICAL DATA
| Type |
|---|
| Window Surgical X-ray |
| Panel thickness |
|---|
| 180 mm |
| 250 mm |
| Structural opening dimensions | |
|---|---|
| width | height |
| 535x500: 500 mm | Střední modul: 1050 mm |
| 500x500: 500 mm | Střední modul: 1050 mm |
| Glazing |
|---|
| X-ray glass 1 mm |
| X-ray glass 2 mm |
| X-ray glass 2,5 mm |
| X-ray glass 3 mm |
| laminated safety glass, thickness 6 mm |

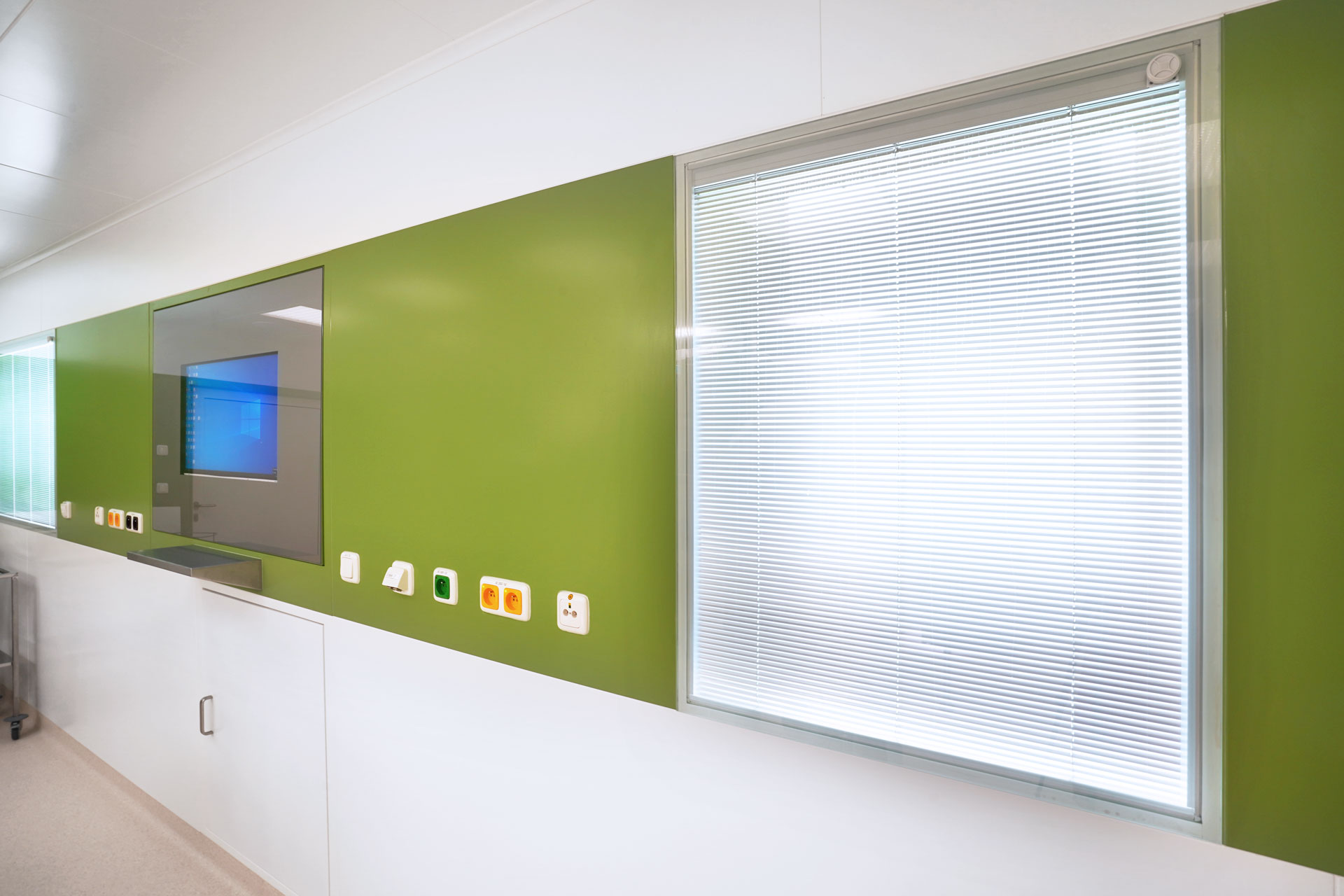

| Blinds type |
|---|
| electric blinds |
| magnetic blinds |
| without blinds |
| Blinds control |
|---|
| on visible side |
| on non-visible side |
| remote (only for electric) |
| The notes must specify the number of the panel in which the blinds control will be installed. |
| Hue and material |
|---|
| Metal sheet, hue RAL 9002 |
| Metal sheet, hue RAL 9016 |
| Stainless steel AISI 304 |
| Powder coating Komaxit, hue RAL |
