Pass-through cabinet 106.01/C
Design
- with mechanical blocker
- with electromagnetic blocker
- with electric lock

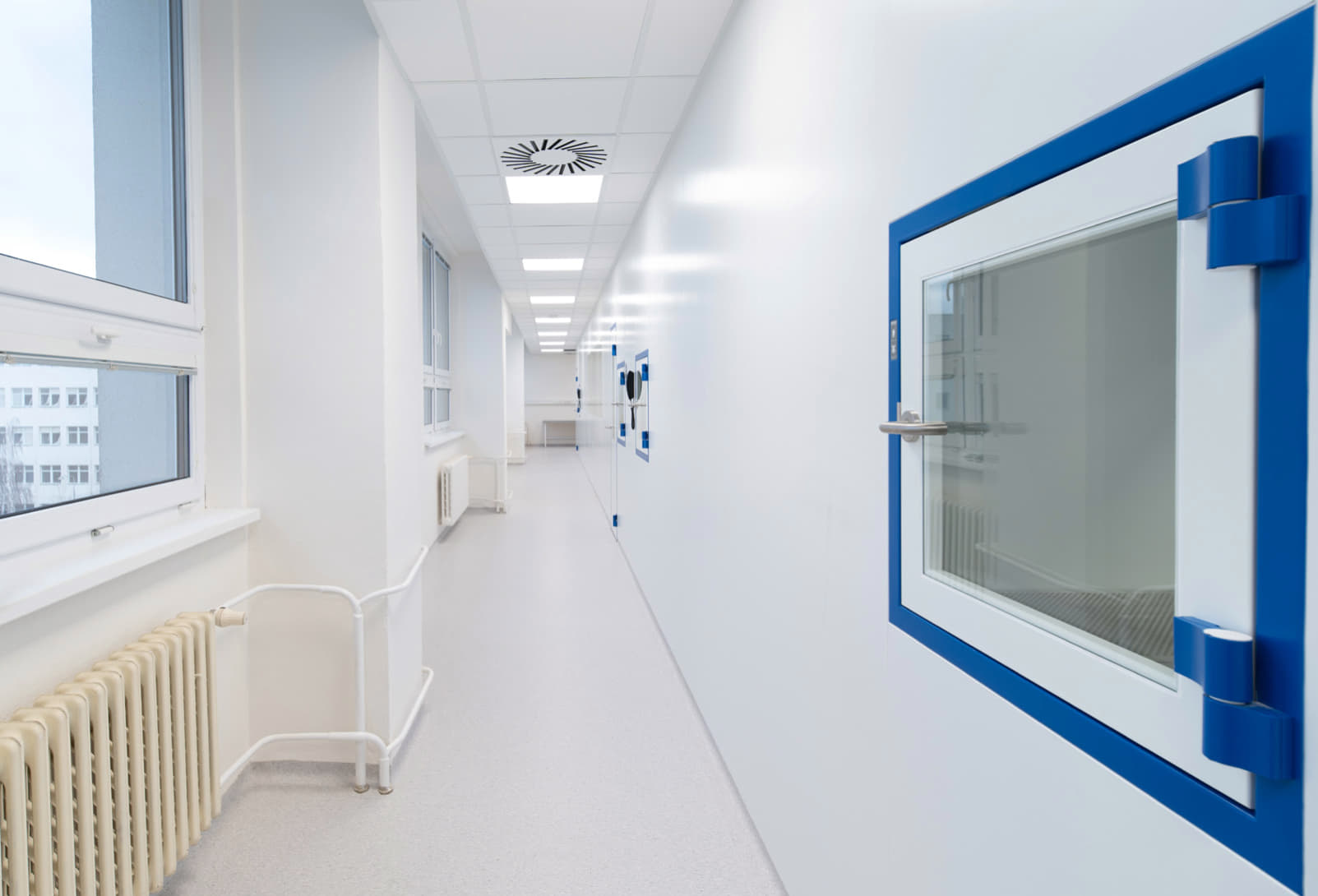

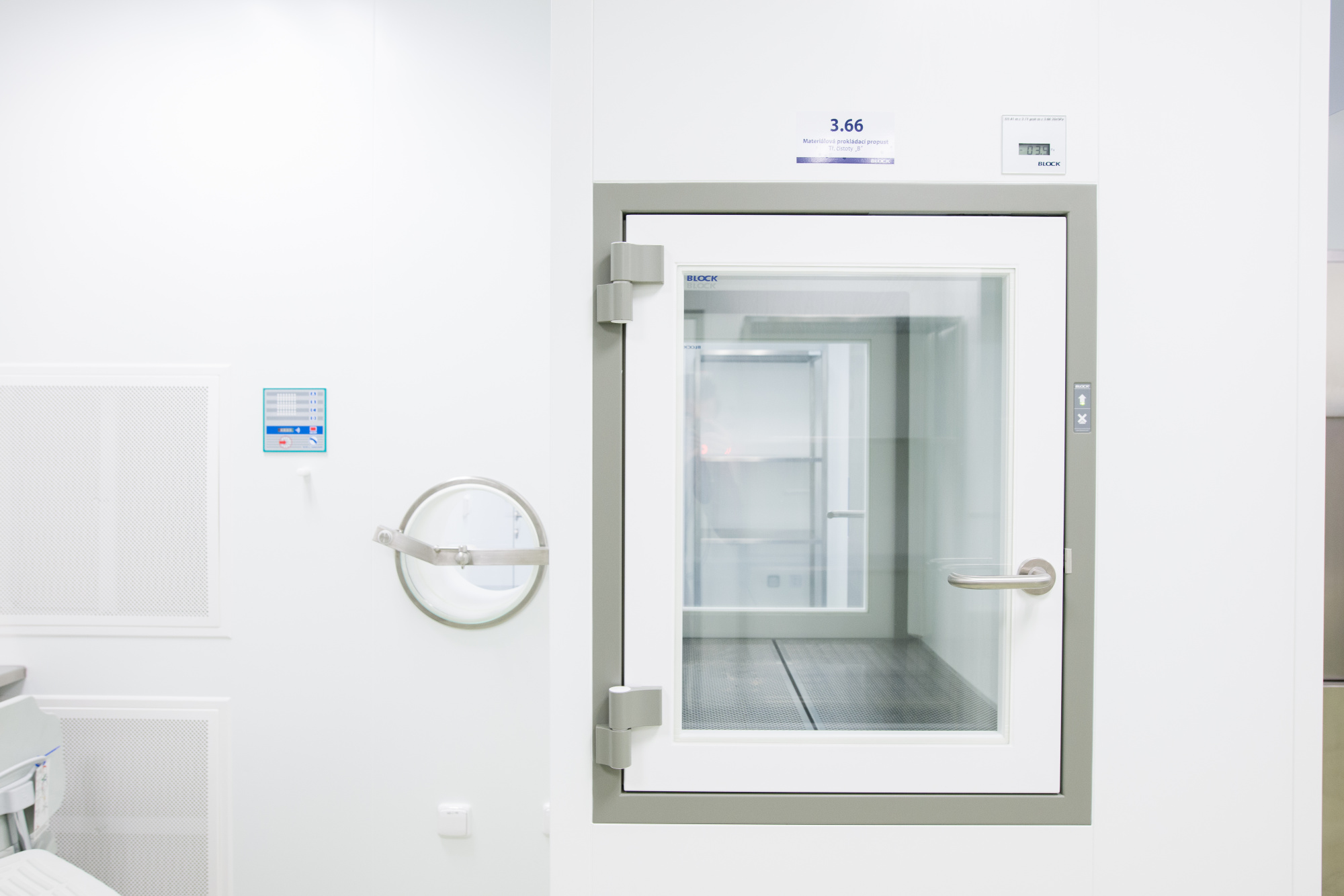

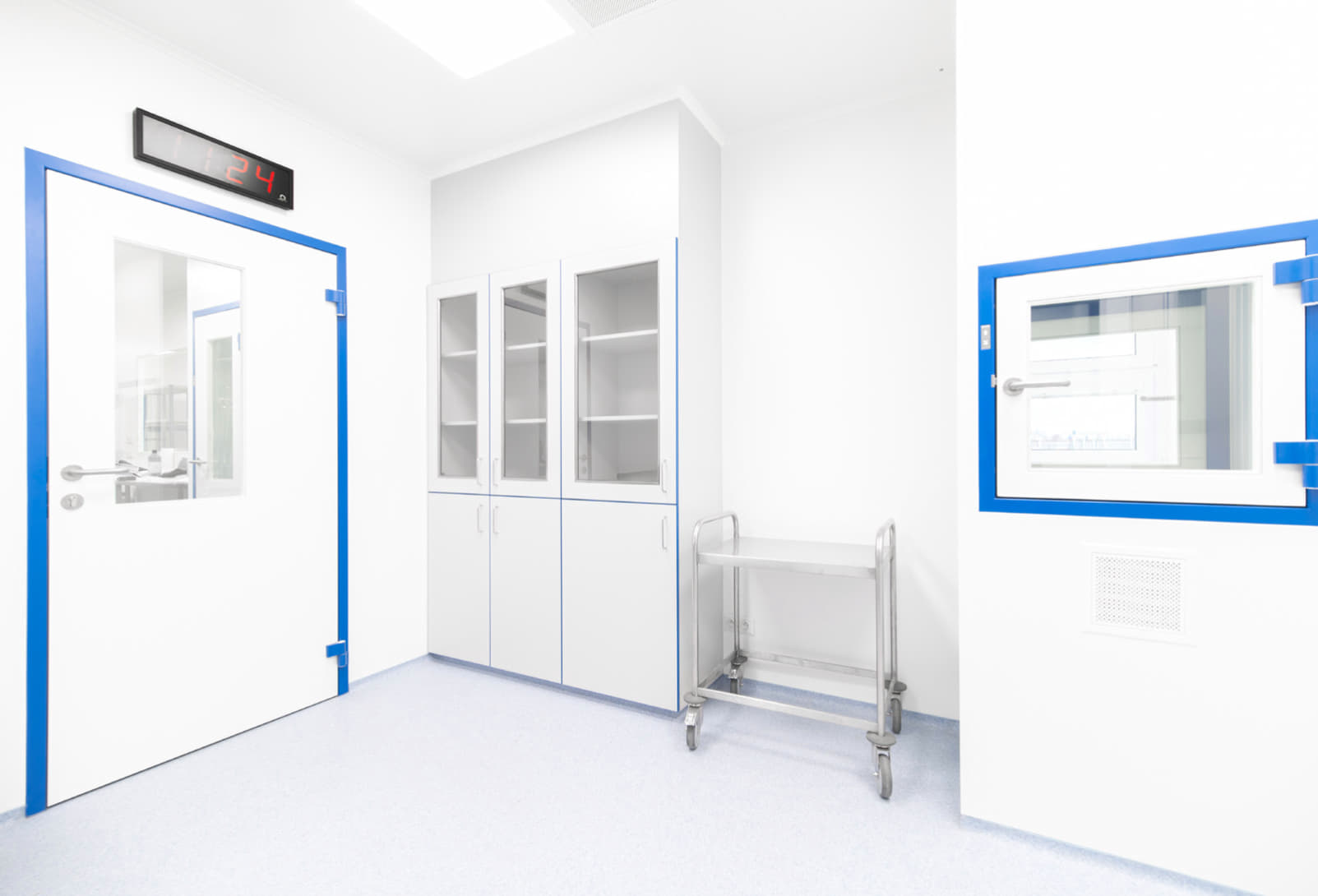

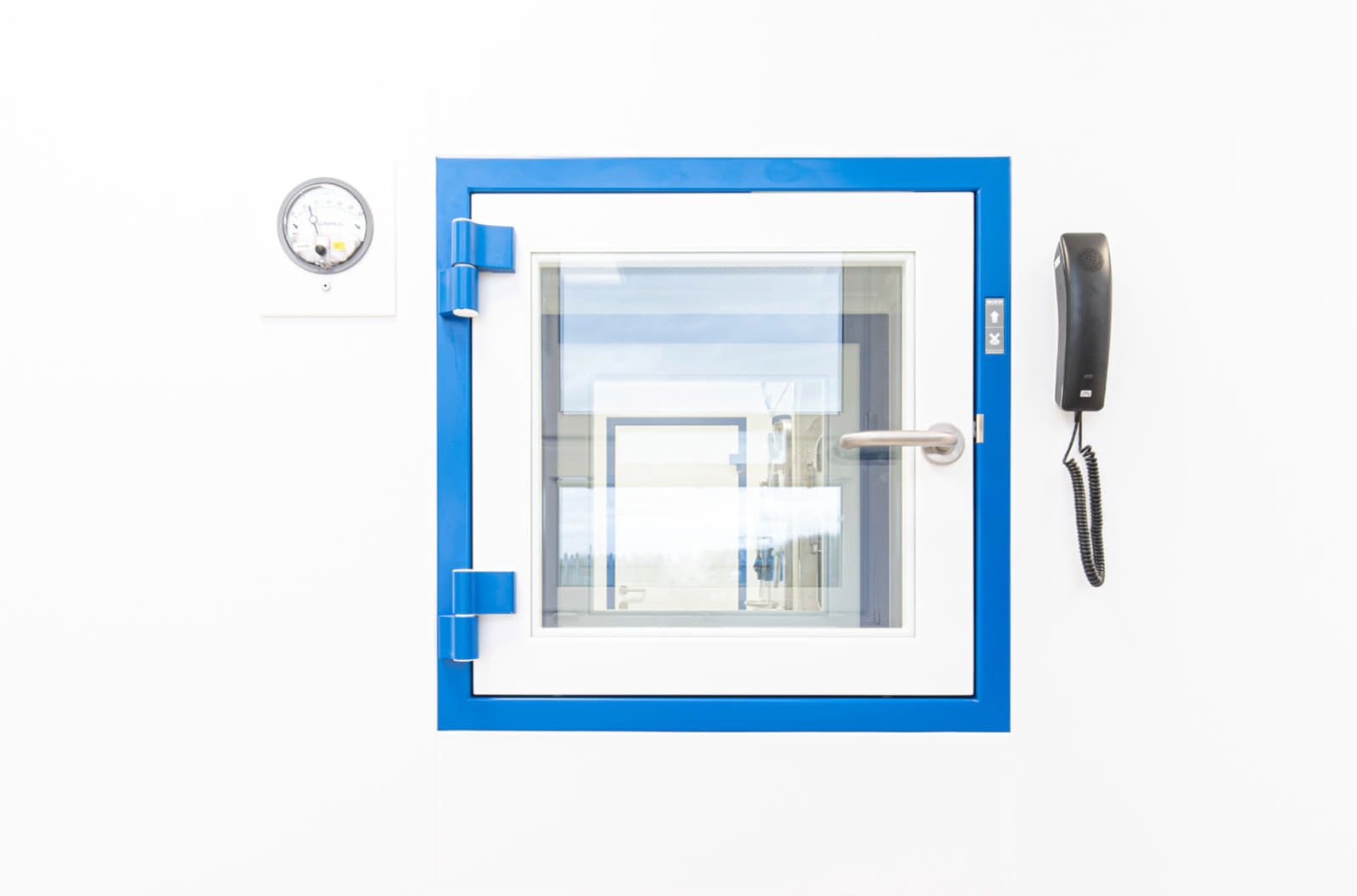

The pass-through cabinet, installed directly into a partition, is used to transfer small objects and materials between rooms with different classes of sterility. The walls, the top and the bottom of the pass-through cabinet are made of sandwich panels. If laminar flow is desirable inside the cabinet, a HEPA filter is fitted in the opening on the top of the cabinet. To exhaust air from the cabinet, the right door is fitted with a grille at the bottom.
For the case when it is possible to install a regulating ventilation grille in the panel, the bottom of the cabin consists of a perforated metal plate, below which there is a sump tray.
The product is certified in EU countries.
TECHNICAL DATA
| Type |
|---|
| Prokládací kabina /vyrobena ze sendvičových panelů tl. 60mm/ |
| Clear pass-through dimensions | ||
|---|---|---|
| width | height | depth |
| 600 mm | 600 mm | 600 mm |
| 800 mm | 1000 mm | 600 mm |
| The standard cabin layout is designed for a maximum load of 10kg. The requirement for greater carrying capacity of the pass-trough cabin must be specified in the note. | ||
| Airflow |
|---|
| aktivní |
| pasivní |
| Active - has its own intake of filtered air through a HEPA filter; air is exhausted to an area with a lower class of cleanliness.Passive - no HVAC treatment. |
| Blocker |
|---|
| Kabina blokována elektronickým solenoidovým zámkem ST-DB100 včetně signalizace |
| kabina má mechanickou blokaci |
| kabina není blokovaná |
| kabina se signalizací |
| Door opening |
|---|
| levé - levé |
| levé – pravé* |
| pravé – levé* |
| pravé - pravé |
| The door is first specified from the side of the clean room.* These versions only may be used in cabins with mechanical blocker. |
| Facing hue and material |
|---|
| Pozinkovaný plech v odstínu RAL 9002 |
| Pozinkovaný plech v odstínu RAL 9016 |
| nerezová ocel AISI 304 |
| Komaxit v odstínu RAL |
| Inner room hue and material |
|---|
| pozinkovaný plech v odstínu RAL 9016 |
| nerezová ocel AISI 304 |
| Casing hue and material |
|---|
| pozinkovaný plech v odstínu RAL 9016 |
| nerezová ocel AISI 304 |
| Komaxit v odstínu RAL |
| Atypical design |
|---|
| Typové provedení |
| Atypické provedení |
| Type design 0 - Unique specification out of offered versions Atypical design Q - atypical design that cannot be uniquely specified by a code |
