E-katalog skupiny BLOCK®
104.12/H
TECHNISCHE DATEN
| Wert | detaillierte Beschreibung | Farbe |
|---|---|---|
| Provedení S 156. | dle vzorníku RAL | |
| Wert | detaillierte Beschreibung | Farbe |
|---|---|---|
| Trido SW80 | Přírodní elox | |

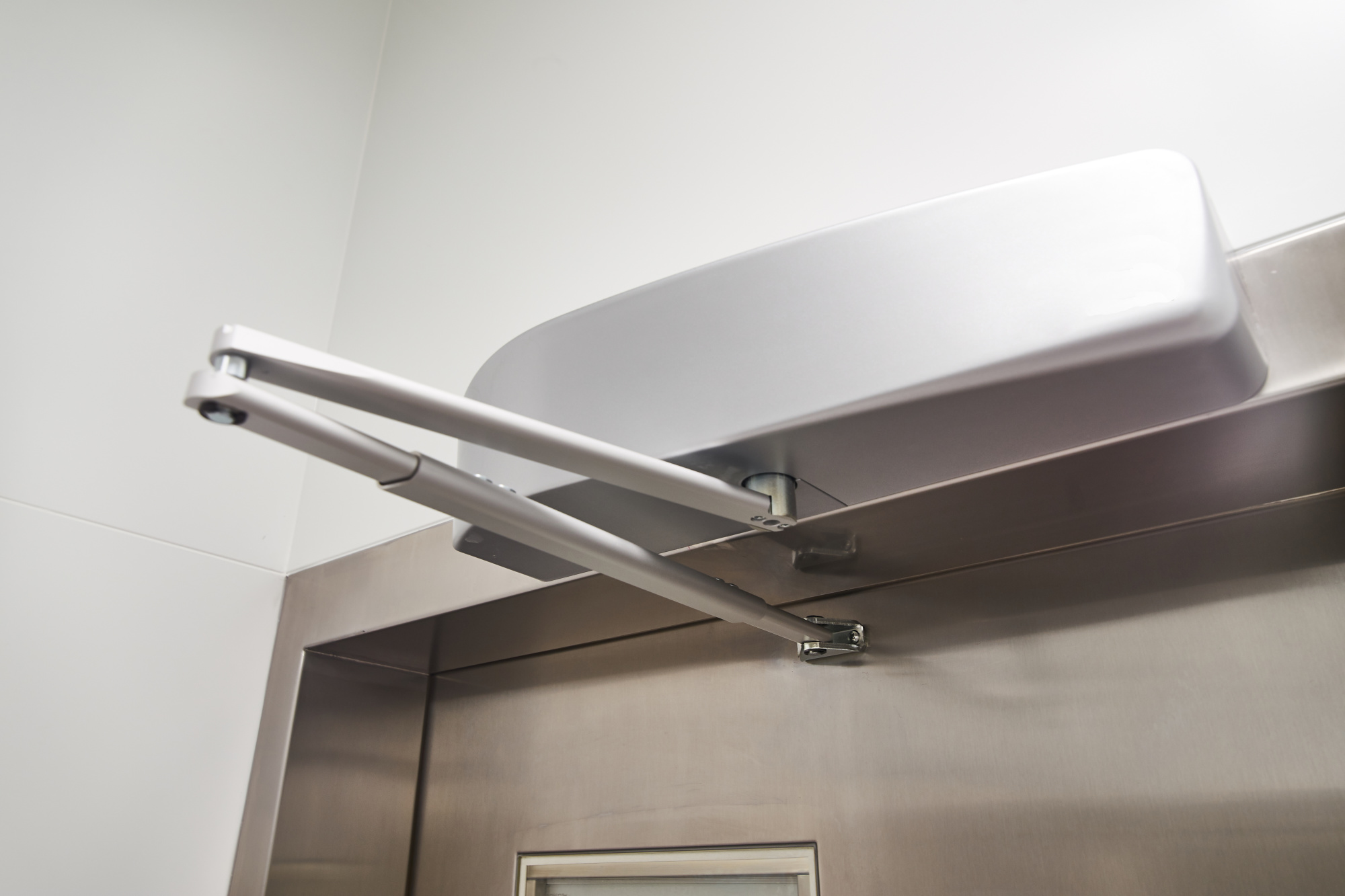

| DORMA TS 83 | dle dveřního křídla | |
| Wert | detaillierte Beschreibung | Farbe |
|---|---|---|
| LINA-R | nerez | |
| LINA-R | nerez | |
| Montáž do výšky vypínačů | černá | |
| FAB. Tlačné panikové kování jednobodové 890100 | RAL | |

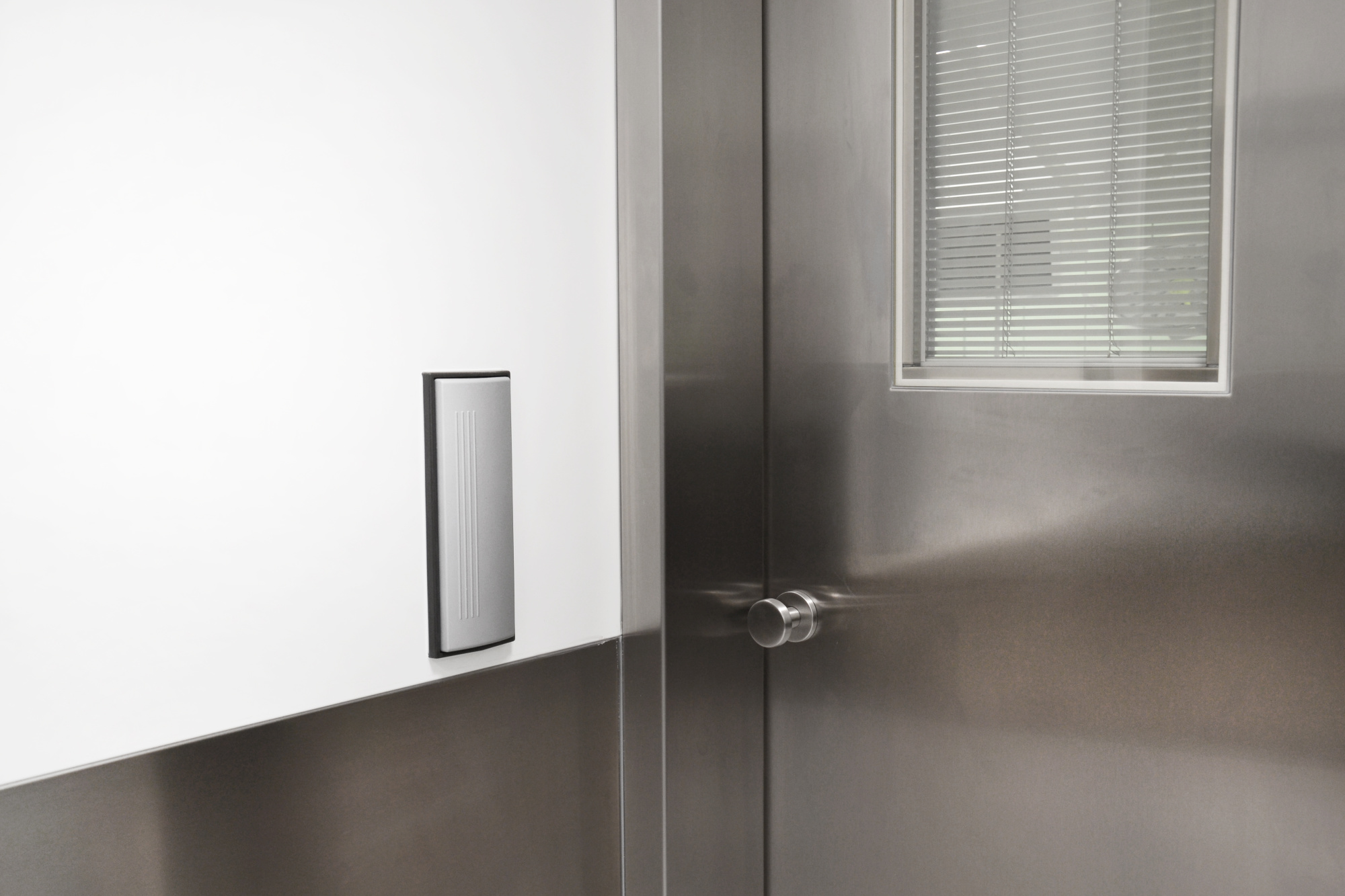

| Bezdotykový snímač | bílá | |
| ABB tango | bílá | |
| LINA-R | nerez | |
| LINA-R | nerez | |
| Wert | detaillierte Beschreibung | Farbe |
|---|---|---|
| openings for lock and insert have not been cut out | ||
| standard cylindrical insert | vložka 35/35 | niklovaný |
| not included in delivery | ||
| atypical | ||
| Drop seal | ||
|---|---|---|
| Wert | detaillierte Beschreibung | Farbe |
| Dropseal ELLEN MATIC 2K | Gumové těsnění (max. výsuv 10-12mm) | Přírodní elox |
| without strip | ||
| atypical | ||
| Protective bumper, kick plate - dimensions and finish must be specified in the notes to the door order. | ||
| Casing mounting | |
|---|---|
| Wert | detaillierte Beschreibung |
| finish for a plasterboard wall (HSE) | tloušťka příčky (mm) - 75; 100; 125; 250 |
| finish for a double partition | |
| finish for partition panels | tloušťka příčky (mm) - 52 |
| finish for Surgical | |
| atypical | |
| When ordering door frames type "H" in the company HSE, it is necessary to state in the order: Door frames H DZD for FOR CLEAN | |
| Casing thickness |
|---|
| 52 mm |
| 100 mm |
| 145 mm |
| in the case using of the additional 25 mm column MS-156, it is necessary using of notes: 1 - additional column on the hinge side 2 - additional column on the opposite side of the hinges |
| Indication |
|---|
| Without indication |
| with indication on the right on side without hinges SP-OZ |
| with indication on the right on side of hinges SP-PZ |
| with indication on the left on side without hinges SL-OZ |
| with indication on the left on side of hinges SL-PZ |
| with double-sided indication on the left SP-O/P |
| with double-sided indication on the right SP-O/P |
| atypical |
| Door wing blocker | |
|---|---|
| Wert | detaillierte Beschreibung |
| without el. blocker | |
| atypical | |
| Facing hue and material |
|---|
| Galvanized metal sheet, hue RAL 9016 |
| Stainless steel AISI 304 |
| Powder coating (Komaxit), hue RAL |
| RAL anti-bacterial varnish |
| atypical design |
| In the case of different door wing facings, it is necessary to specify the hue as atypical, and to provide more details in the notes. |
| Casing hue and material |
|---|
| Galvanized metal sheet, powder coating (Komaxit), hue RAL 9016 |
| Stainless steel AISI 304 |
| Galvanized metal sheet, powder coating (Komaxit), hue RAL |
| RAL anti-bacterial varnish |
| Atypical design |
|---|
| Type design |
| Atypical design |
| Type design 0 - Unique specification out of offered versions Atypical design Q - atypical design that cannot be uniquely specified by a code |
